# How to use Dynamic Lighting on Windows 11 ?

{% hint style="info" %}
Dynamic Lighting only worked on <mark style="color:red;">Windows 23H2</mark> and later.
{% endhint %}

WP-DLC01 connects to the computer using a usb typec and can be placed inside or outside the chassis. WP-DLC01 connects to the computer using a usb typec and can be placed inside or outside the chassis. WP-DLC01 connects to the computer using a usb typec and can be placed inside or outside the chassis. has 2 port. One port USB Type-C to PC or Laptop, the other port 5V 3Pin ARGB Connector to 5V WS2812 LED strip.

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2Fx3qosn1MqlAfDtLDKeLp%2FDynamic%20Lighting%20Controller%20how%20to%20use.png?alt=media&#x26;token=4a38258d-d282-416c-b80b-5ccf70098ee1" alt=""><figcaption></figcaption></figure>

## Connect to PC/Laptop

WP-DLC01 connects to the computer using a usb typec and can be placed inside or outside the chassis.

### PC Case Inside

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2FCXCnPobPvlKbBKtj3Yjd%2F%E5%9B%BE%E7%89%87.png?alt=media&#x26;token=89fcd3fb-893e-4a0e-953c-5a15f2931c1b" alt="" width="509"><figcaption></figcaption></figure>

If you want to build a cool PC case with various lighting effects, it is best to place the controller inside the chassis.

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2FGF9A6tSHqNSJNaQY6vWT%2FDynamic%20Lighting%20Controller%20cable%201.jpg?alt=media&#x26;token=a611a36c-0c05-4978-be83-4e829768dec8" alt="" width="375"><figcaption></figcaption></figure>

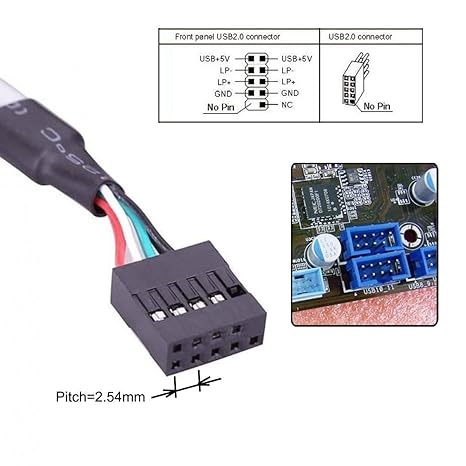

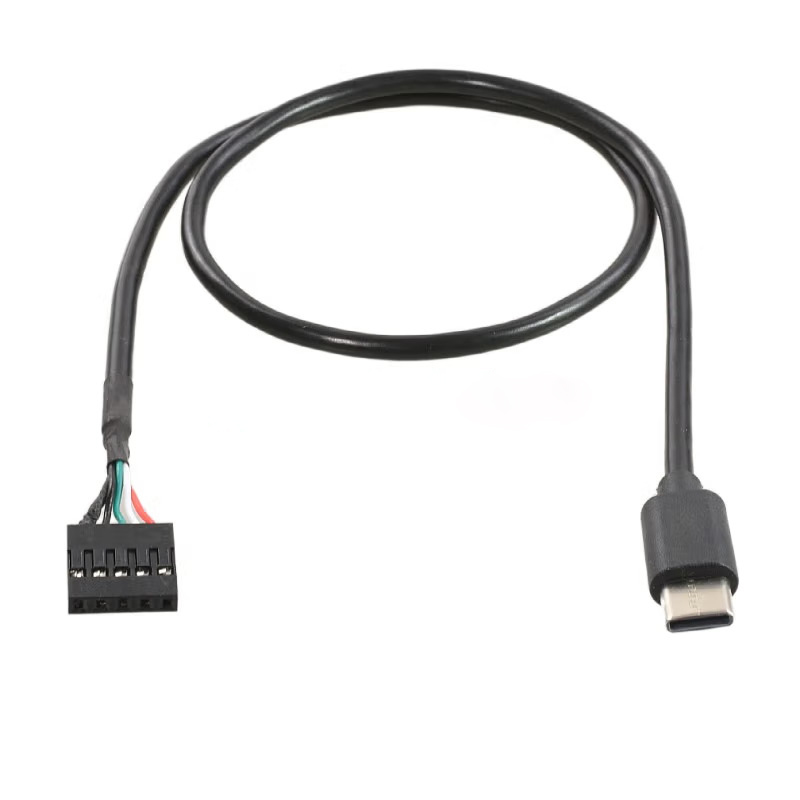

In order to facilitate users, we have included an internal USB cable , which can convert the 9Pin USB 2.0 on the motherboard to USB Type-C. With this cable, you will easily be able to connect the controller to the computer motherboard.

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2FS55ODI2yLQ6Wl2XWfQw8%2F9pin%20usb%202.0.jpg?alt=media&#x26;token=f9d6a635-08c3-423a-96f9-cf9063b16f17" alt="" width="350"><figcaption></figcaption></figure>

### PC Case Outside / Laptop

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2FP3PvbwpFuWmSQx2fEzbt%2F%E5%9B%BE%E7%89%87.png?alt=media&#x26;token=90271e42-a529-4904-8944-3a39d23f5059" alt="" width="563"><figcaption></figcaption></figure>

If you want to place the ambient lighting outside the chassis, such as on the desk, behind the monitor, or around the room, or if you are using a laptop, you will need to directly connect the controller to the computer's USB port.

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2F2ij0nOIOFSDR2idxvYQw%2Fusba-c.jpg?alt=media&#x26;token=8fb192c0-2dd3-4405-8c07-acf43fc19088" alt=""><figcaption></figcaption></figure>

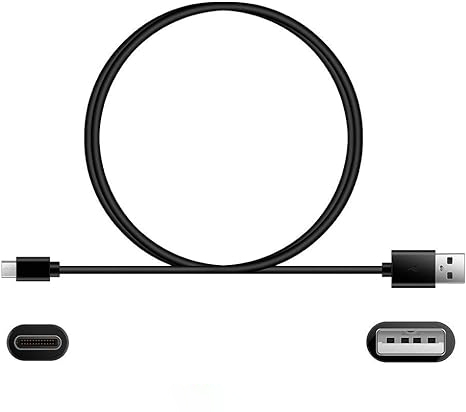

If the controller is placed outside the chassis or connected to a laptop, you can use a regular USB-A to USB-C or USB-C to USB-C data cable. If you purchase a package, it will include one such cable.

## Enable or Disable Dynamic Lighting on RGB Devices in Windows 11

{% hint style="info" %} <mark style="color:red;">Windows 11 version 22H2 with KB5030310 Build 22621.2361 or later</mark>
{% endhint %}

* Open the **Settings** app.&#x20;
* Click **Personalization** from the side menu.&#x20;
* Choose **Dynamic lighting**.

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2FO8OPhOMgiWSOyUpOoa4q%2FWP-DLC01%201.png?alt=media&#x26;token=7ab160da-498a-4bf9-869c-be3283d0f627" alt=""><figcaption></figcaption></figure>

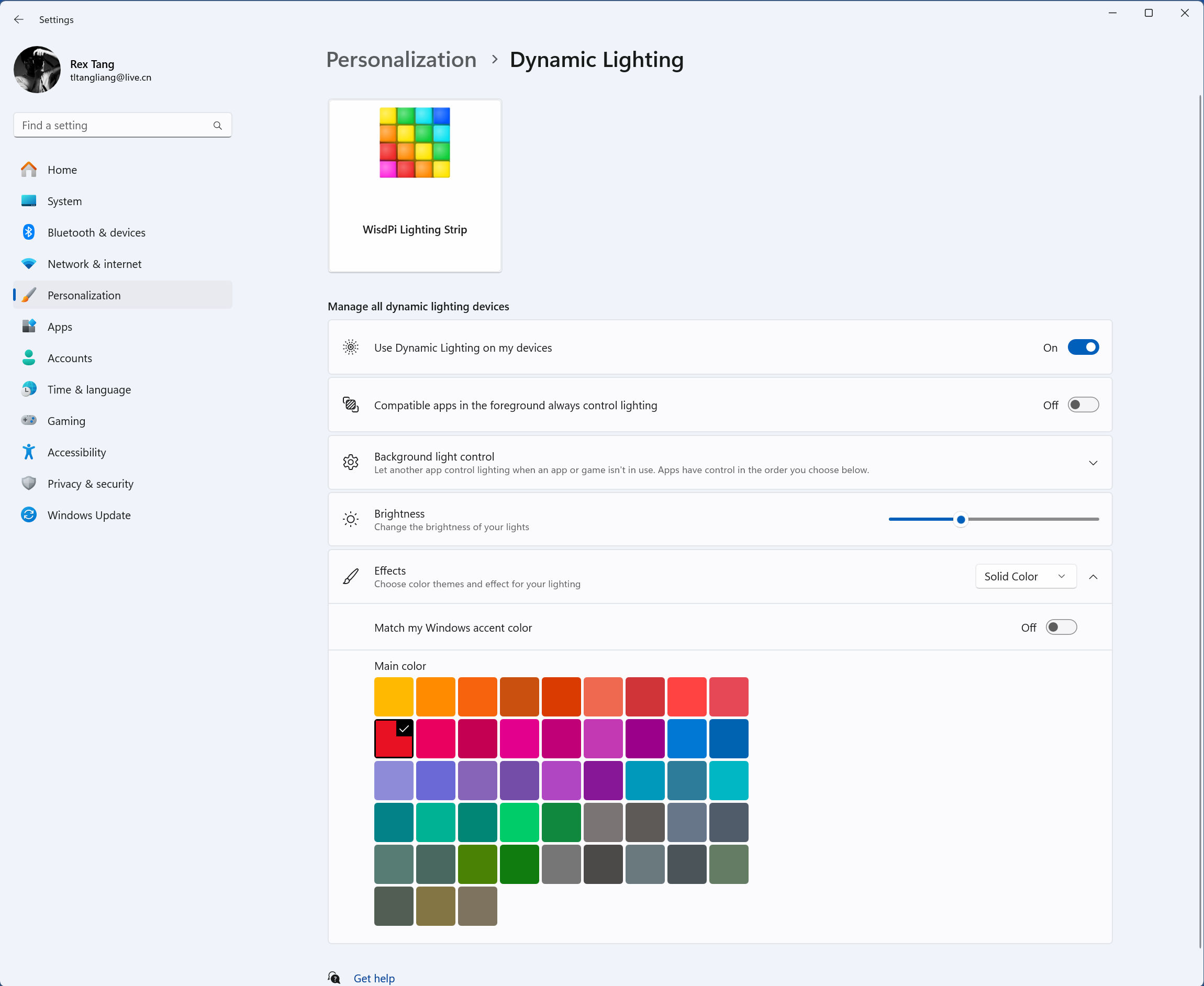

* You'll see your compatible devices at the top. However, you can change Dynamic Lighting for all your devices at once using the options below that. Make sure **Use Dynamic Lighting on my devices** is enabled.

<figure><img src="https://389921961-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjPowryxiQvRDiYHC9qWy%2Fuploads%2FAoHqne3IIgRcq6r1JXr9%2FWP-DLC01%202.png?alt=media&#x26;token=e5ab374e-89ca-4d69-83ca-1d8f3cbe5cea" alt=""><figcaption></figcaption></figure>

* You can use the **Compatible apps in the foreground always control lighting** to choose whether other apps should be able to override the lighting controls set by Dynamic lighting&#x20;
* Use the **Brightness** slider to adjust how bright the RGB lighting should be.&#x20;
* The **Effects** option lets you choose from six effects:&#x20;
  1. **Solid color** - Displays the selected color constantly
  2. **Breathing** - Turns the lighting on and off in a single color
  3. **Rainbow** - Cycles through the color spectrum.
  4. **Wave** - Creates a wave effect with two selected colors.
  5. **Wheel** - Displays two selected colors in a spiral animation.
  6. **Gradient** - Displays two static colors chosen by the user.
* You can choose the colors and effect speed (for animated effects) by expanding the **Effects** area to show the color selector and **Effects** slider. To use a custom color, you may need to disable the **Match my Windows accent color** option.
* All your changes are applied in real-time and saved automatically, so you can close the app when things look good to you.
