RPi HAT: WisdPi Hifi DAC

PreviousRender ImageNextQuick start

Last updated 1 year ago

SKU: SC230202

EAN:6976158320908

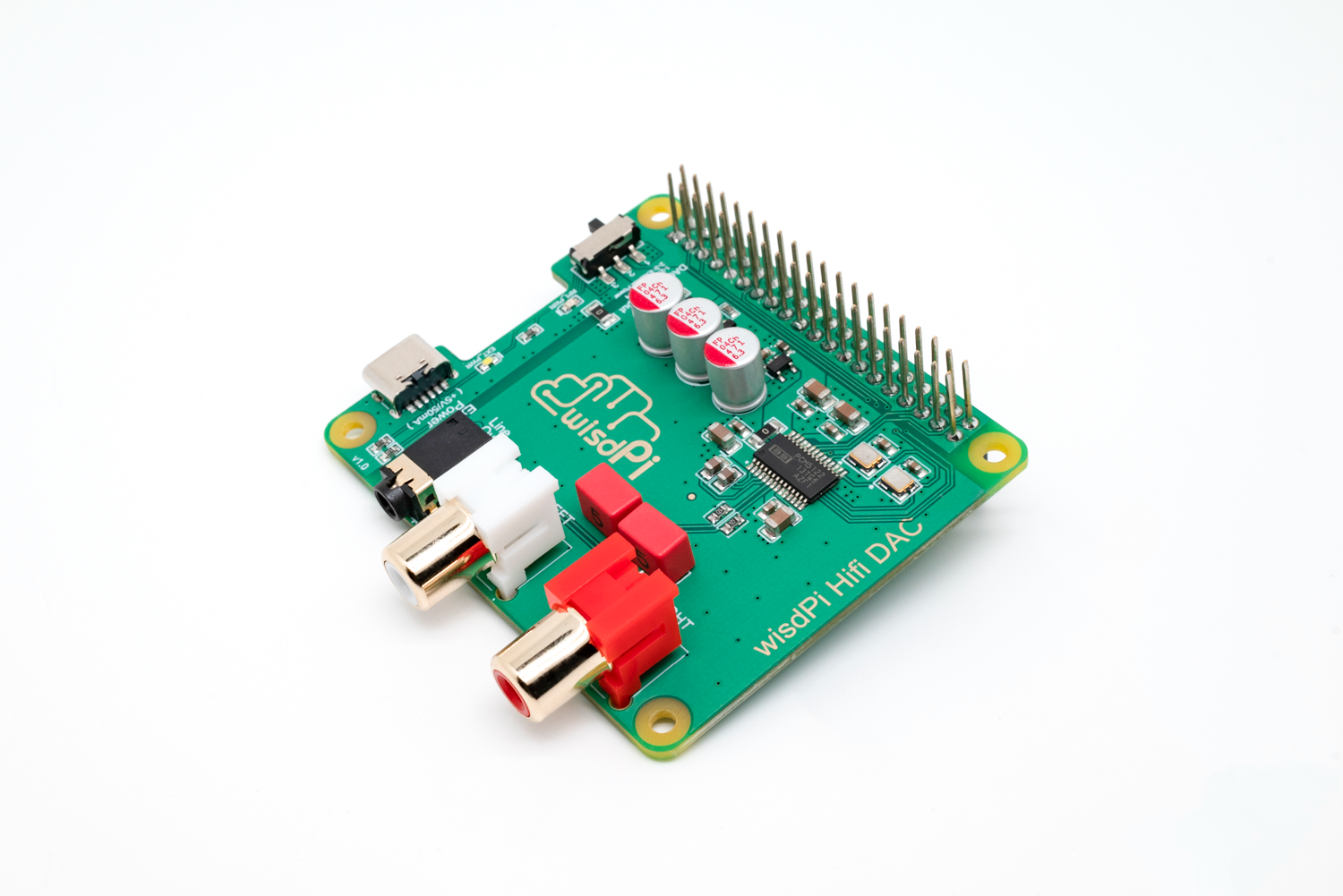

Introducing our new HiFi DAC product, specifically designed for use with Raspberry Pi.

With an external power interface and active power noise reduction, this product is a step above the competition.

Our HiFi DAC delivers exceptional sound quality, allowing you to fully enjoy your audio experience.

The product is easy to install and use, and is compatible with a variety of Raspberry Pi models.

Whether you're an audiophile or just looking for an upgrade to your audio setup, our HiFi DAC is the perfect choice.

Experience the difference today!

Features

  • Support Raspberry Pi 5

  • External +5V type-C Power input

  • Active power noise reduction

  • Stereo audio DAC TI PCM5122, sample rates up to 384-KHz/32-Bit.

  • Compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+ with the 40-pin connector.

  • Gold plated RCA jacks and gold plated 3.5mm high-end headphone jack

  • Support all Raspberry Pi music playback system, like LibreElec, OSMC, Max2Play, RuneAudio, Volumio, Moode, PiCorePlayer, PiMusicBox, OpenELEC, Debian, Ubuntu etc. Support DSD over PCM(DOP) mode.

Electrical Characteristics

  • +5V power from Raspberry Pi 40-Pin header or external type-c usb

  • DAC SNR 112dB, THD -93dB

  • Full Scale Output of DAC is 2.1Vrms.

  • Sampling Frequency ranges from 8kHz to 384kHz.

  • Ultra-low noise voltage regulators for optimal audio performance.

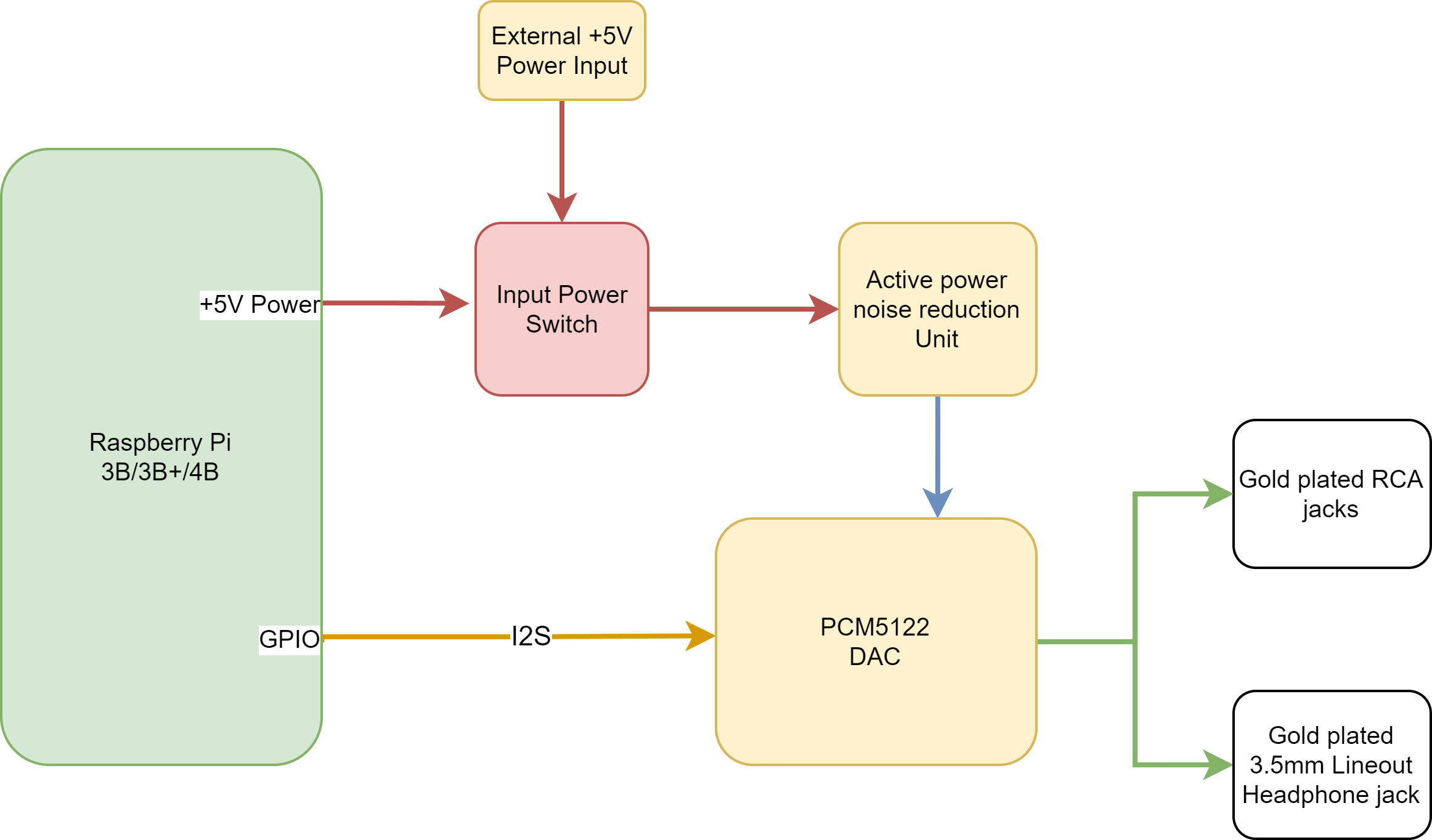

Block Scheme
